TM-218 UVC

Product Price $ 10
count:

TM-218 UVC-Require

TM-218 UVC

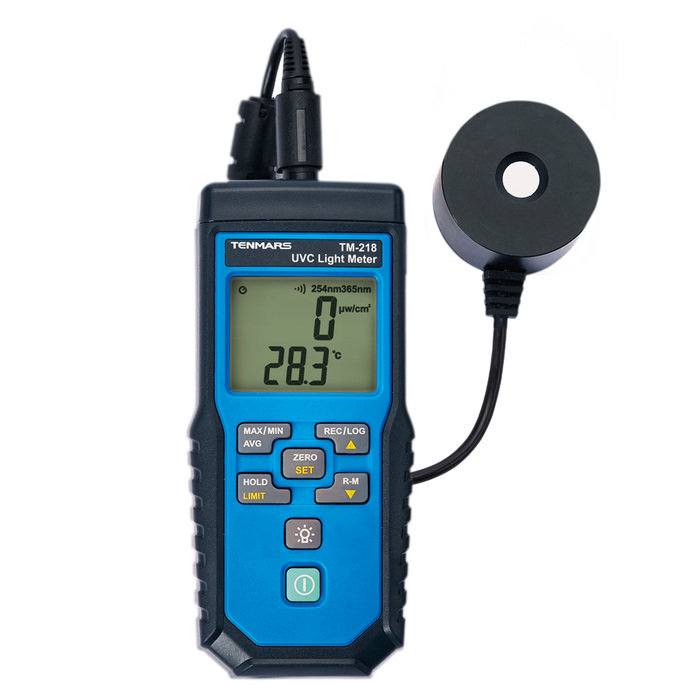

TM-218  UVC Light Meter


  • UV intensity: 0~9999uw/cm2, 10.00~40.00mw/cm2.
  • Locking for Max./Min./Ave. value
  • Auto-switch band and locking data
  • Display the UV intensity and temperature simultaneously


Application

  • Quickly determine the UV intensity of the factory’s UV products
  • UVC germicidal lamp intensity and aging measurement.






Features

  • 4-digit LCD display, the max. value is up to 9999.
  • UV intensity: 0~9999uw/cm2, 10.00~40.00mw/cm2.
  • Locking for Max./Min./Ave. value
  • Auto-switch band and locking data
  • Display the UV intensity and temperature simultaneously
  • Enable and disable auto-power-off
  • Alarm setting LIMIT: The beep of auxiliary judgment for pass/fail from factory QC
  • 200 logs for stored data with auto logging/manual record
  • Sampling time: per 2 seconds.



Specifications

  • Dimensions:132x60x38mm(length x width x height).
  • Sensor:39.5Ø x 30.5(H) mm
  • The line length of the light receiver: approximate 100 cm.
  • Weight: Approximately 320 grams.

ELECTRIC SPECIFICATION
  UV Irradiance Measurement Range
 Spectrum Range
  220nm～280nm
 Spectrum Range
  254nm
 Range
  1μW/cm²～40.00m W/cm²
 Accuracy
  ±4%+1digit
 Resolution
  1μW/cm², 0.01 m W/cm²
Temprature
 Range
 0.0°C～70.0°C(32.0°F～158.0°F)
 Accuracy
 ±1.0°C(±2.0°F)
 Resolution
 0.1°C/0.1°F



Accessories

  • UV sensor
  • User’s Manua
  • 9V alkaline battery
  • Carrying case

Download

File type
file name
Format
Download
TM-218
En User’s Manual
PDF
Dowload
