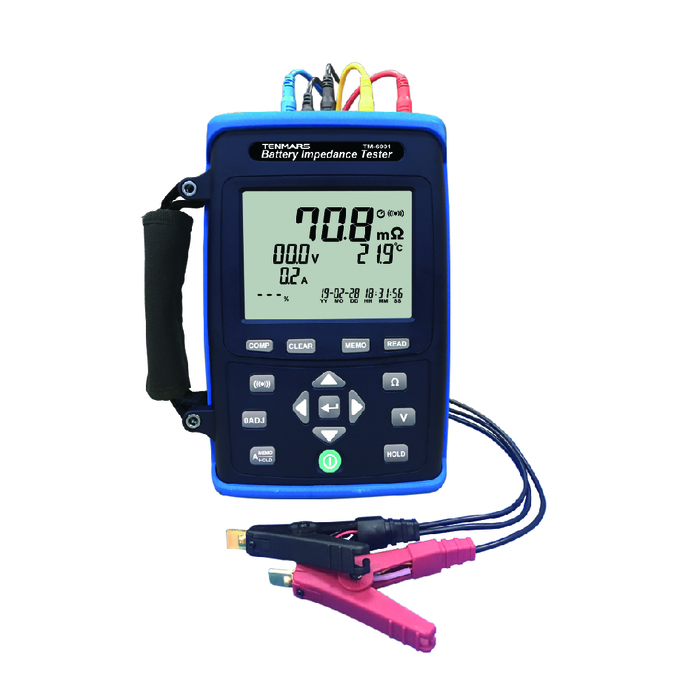

TM-6001   Battery Impedance Meter


  • Measuring method：Impedance (AC four-terminal method).
  • A/D conversion: Dual slope method.


Application

  • TM-6001 is an ideal tester for automotive, UPS maintenance and telecommunication applications.
  • Quick response time.
  • Simultaneously display the results of battery Impedance,voltage measurements.
  • Support the comparator function to rate the conditions as pass,warning or fail.






Features

  • The Battery Tester is designed for measuring the internal impedance and open circuit voltage of the secondary battery including Nickel-metal hydride battery ( NiMH),Nickel-cadmium battery(NiCd),Lithium-ion battery(Li-ion), Alkaline battery and lead-Acid battery.
  • AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get the accurate results.
  • Multi-display to show the internal impedance, voltage and clock of the battery simultaneously.
  • It has 99 sets of composite comparator function, which can be set at impedance and voltage values to get the reliable detection of battery deterioration.
  • Pin type leads, which can easily contact the battery electrodes supplied as standard to get more accurate 4-terminal measurement.



Specifications

  • Display：LCD display and LEDs (comparator output).
  • Sampling rate:2 Second.
  • Open-Circuit terminal voltage: 7.0Vp-p max.
  • Input over range: the screen displays “OL”.
  • Low battery detection: the screen displays “”.
  • Auto power off: The meter will turn off automatically after about 15 minutes of inactivity, allows user to set the inactive time (01〜99 minutes).
  • Comparator settings: High and Low limits of the comparators impedance and voltage.
  • Number of comparator settings: 99 sets.
  • Manual and auto continuous Data logging: 9999 sets.
  • Dimension: 240mm(L)x170mm(W)x66mm(H).
  • Weight:about 1500g. (Including battery)
Electrical Specifications:(23℃±5℃, below 80％RH )
Resistance measurements
 •Temperature coefficient ：±(0.1％ rdg+0.5digits)/℃.
 •Measurement current frequency：1KHZ±30HZ.
 •Measurement open-circuit terminal voltage：7Vp-p
Range
Resolution
Measurement current
Accuracy
4mΩ
1μΩ
150m A approx.
±(1％ reading+20digits)
40mΩ
10μΩ
150m A approx.
±(0.8％reading＋10digits)
400mΩ
100μΩ
50m A approx.
4Ω
1mΩ
15m A approx.
40Ω
10mΩ
1.5m Aapprox.
400Ω
100mΩ
150μ A approx.

Voltage Measurements
Temperature coefficient:(±0.1％ rdg ±0.5digits)/°C
Range
Resolution
Accuracy
6V
1mV
±(0.1％ reading＋6digits)
60V
10mV

Temperature measurement
Measurement Range
Resolution
Accuracy
-20°C~60°C
-4°F~140°F
0.1°C
0.1°F
±1.0°C
±1.8°F
External T10 adapter and K-Type temperature measurement
Measurement Range
Resolution
Accuracy
0°C~400°C
32°F~752°F
0.1°C
0.1°F
±2.0°C
±3.6°F

DC Current (DCA) measurement (optional TM-11004)
Range
Sensitivity
Resolution
Accuracy
700A
0.6A〜700.0A
0.1A
±(2.0％ reading+5digits)





Accessories

  • User’s Manual
  • Kevin Clip type leads with temperature sensor
  • Pin type leads
  • AC100~240V 9V/1A(5.5*2.1*1.0mm) switching transformer
  • 1.5 V – LR6 – AA – AM3 – MN 1500.
  • Carrying Case
  • 5-pin USB cable
  • Installation CD

Download

File type
file name
Format
Download
Installation Guide
HB2TM6001030
PDF
Dowload
Software User Manual
HB2TM6001020
PDF
Dowload
Software
TM-6001-6002共用_KBA1TM6001M2_Bat-Impedance
exe
Dowload
TM-6001
EN. User’s Manual
PDF
Dowload
