ST-106

Product Price $ 300
count:

ST-106-Require

ST-106

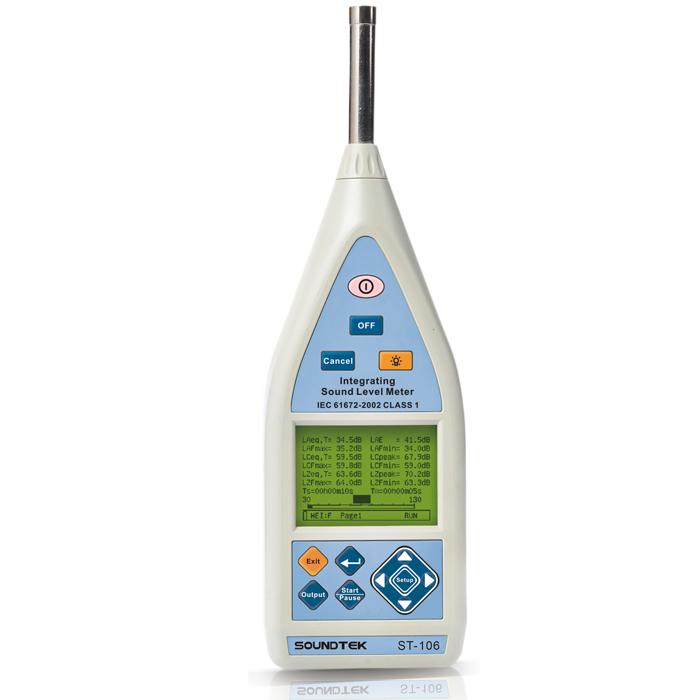

ST-106  Class 1 Integrating Sound Level Meter


IEC-61672-1:2013 class 1


Application

ST-106 is a high performance conforms to international IEC61672-1:2013 Class 1 Integrating Sound Level Meter. It may also survey: Lxyi, Lxyp, Lxeq, Lxmax, Lxmin, LAE, Lcpeak, Lzpeak, three kind of at the same time frequency weighting (A, C, Z) and three kind of at the same time weighting (F, S, I) may simultaneously survey many kinds of appraisal target, the dynamic range is bigger than 110dB, it does not need to select the measuring range when doing measurements, the operation is simple.
Applications: Evaluation of environmental noise, Measurements of noise at workplaces, Assessment of product noise.





Features

  • Fast,Slow,Impulse response time
  • Sampling frequency:20.8µs (48KHz)
  • Wide frequency range:10Hz~16KHz
  • Wide measurement range:30dB~130dB
  • Wide dynamic range:110dB
  • A/C/Z frequency weighting



Specifications

  • Dimensions:285x90x39mm(length x width x height).
  • Weight: Approximately 500 grams (including batteries).
Electrical Specifications
temperature 23℃ ± 5℃, relative humidity < 80%.
 Display
 LCD with Back Light (Green Yellow Light)
 (240X160 dots)Real time clock, Year, Month, Minute
 Display Refresh Rate
 1 Hz for value; 10 Hz for graph
 Major Applicable Standards
 IEC 61672-1：2013 Class1
 Other Standards
 IEC60651:1979 TYPE 1
 IEC60804:2000 TYPE 1
 Microphone
 ½” pre-polarized condenser microphone
 build in preamplifier: 40 mV/Pa, frequency range:
 10 Hz~16 kHz, heat noise: <20 dB(A)
 Measurement Items
 Lxyi,Lxyp,Lxeq,Lxmax,Lxmin,LAE，Lcpeak,Lzpeak
 Measurement Range
 30dB ~ 130dB (A)
 35dB ~ 130dB (C)
 40dB ~ 130dB (Z)
 Dynamic range
 >110 dB
 Integrate Time Setup
 randomly,10s,1m,5m,10m,20m,30m,
 1h,2h,4h,8h,16h,24h
 Maximum Peak C Weighting
 Sound Level Measurement
 70~133 dB
 Time Weighting
 Fast, Slow, Impulse, Peak
 Frequency Weighting
 A/C/Z
 Frequency Range
 10Hz~16KHz
 Sampling Rate
 20.8μs (48KHz)
 Analog Output
 AC 20mV/dB
 Starting Time
 ＜10 Second
 AC Adapter
 Input:100V~240V ACV,Output:5V DCV



Accessories

  • User’s manual
  • SWITCHING POWER SUPPLY: 100V ~ 240V AC to DC 5V/1A.
  • 3.5Øplug to MINI USB connector.
  • Carrying case.
  • 4 batteries 1.5 V – LR6 – AA – AM3 – MN 1500.
  • 60mm diameter windscreen.
Option Accessories
  • 5M microphone cable.
  • 10M long microphone cable.
  • 20M long microphone cable.
  • ST-120 sound level calibrator.

Download

File type
file name
Format
Download
ST-106
EN. User’s Manual
PDF
Dowload
