ST-107

Product Price $ 300
count:

ST-107-Require

ST-107

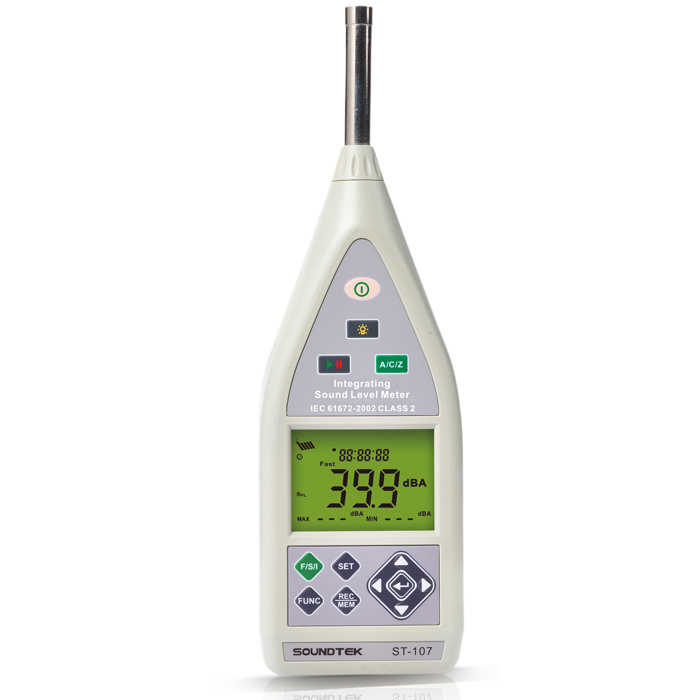

ST-107   Integrating   Sound Level Meter


  • Easy to use
  • competitive price
  • Dynamic range 100dB


Application

The ST-107 is high performance class2 integrating sound level meter, It measures LAF, LAS, LAI, LCF, LCS, LCI, LZF, LZS, LZI, LAmax, LCmax, LZmax, LAmin, LCmin, LZmin, Leq (A,C,Z weight),SPL, SEL, Lcpeak functions





Features

  • Fast, Slow, Impulse response time
  • Wide frequency range:31.5Hz~8KHz
  • Wide measurement range:30dB~130dB
  • Wide dynamic range:100dB
  • A/C/Z frequency weighting



Specifications

  • Dimensions:285x90x39mm(length x width x height).
  • Weight: Approximately 500 grams. (including Batteries)
Electrical Specifications
Environmental conditions: temperature 23℃ ± 5℃, relative humidity < 80%.
 Display
 Double rows LCD MAX reading 1999
 Display Refresh Rate
 1 Time/sec
 Major Applicable Standards
 IEC 61672-1：2002 Class2
 Other Standards
 IEC60651:1979 TYPE 2
 IEC60804:2000 TYPE 2
 ANSI S1.4:1983 Type12
 Microphone
 ½inch Electret condenser microphone
 Measurement Items
 Lxyp, Lxmax, Lxmin, Lxeq, LAE, Lcpeak,RT60
 Measurement Range
 30dB ~ 130dB (A)
 35dB ~ 130dB (C)
 40dB ~ 130dB (Z
 Dynamic range
 100 dB
 Integrate Time Setup
   Manual, 10s, 1m, 5m, 10m , 30m,
 1h, 8h, 16h, 24h
 Internal memory
 24C512 × 4 ；MAX Datalogger data ＞37,000
 Micro SD Card
 The max support capacity of
 micro SD card is 32GB；
 37,000 data about story space 300KB
 Peak value
 measurement range
 70~133 dBC
 Time Weighting
 Fast, Slow, Impulse, Peak
 Frequency Weighting
 A/C/Z
 Frequency Range
 31.5Hz~8KHz
 DC Output
 2Vdc/130dB
 AC Output
 2Vrms/130dB
 Starting Time
 ＜10 Second

Accessories

  • User’s manual
  • SWITCHING POWER SUPPLY: 100V ~ 240V AC to DC 6V~9V/500mA.
  • Carrying case.
  • 4 batteries 1.5 V – LR6 – AA – AM3 – MN 1500.
  • 60mm diameter windscreen.
  • Setup CD-DISK
  • MINI USB Cable (Mini B type)

Download

File type
file name
Format
Download
ST-107
PC SOFTWARE & DRIVER INSTALLATION
exe
Dowload
ST-107
EN. User’s Manual
PDF
Dowload
