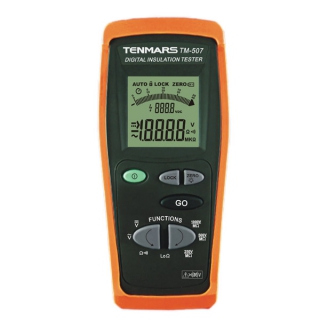

DC Voltage measurement
|
|
Range
|
Resolution
|
Accuracy
|
Input
Impedance
|
Overload
Protection
|
|
0.1~600.0V
|
0.1V
|
±(0.5%rdg+1dgt)
|
3MΩ
|
605V AC max RMS
|
| AC Voltage measurement |
| Range |
Resolution |
Accuracy |
Input
Impedance
|
Overload
Protection
|
| 0.1~600.0V |
0.1V |
±(0.8%rdg +4dgt) |
3MΩ |
605V AC max RMS
|
Max crest factor:√2
|
Resistance measure / Test Continuity with buzzer
|
|
Range
|
0.1 - 199.9Ω
|
|
Resolution
|
0.1 Ω
|
|
Accuracy
|
±(2.0% rdg + 3dgt)
|
|
Overload protection
|
605V AC max RMS per 1 minute
|
|
Ω0.2A : Continuity of protection conductors
|
|
Range
|
0.01 - 19.99 Ω
|
|
Resolution
|
0.01 Ω
|
|
Accuracy
|
(2.0% rdg + 3dgt)
|
|
Overload protection
|
605V max RMS
|
• Test current : >200mA DC up to 5Ω (measuring cables resistance included)
• Test current : >45mA DC over 5Ω (measuring cables resistance included)
• Open circuit voltage : 4 < V0 < 24V
|
Test voltage
|
Range
|
Resolution
|
Accuracy
|
Overload protection
|
|
250V
|
0.001 - 0.100MΩ
|
0.001MΩ
|
±10 dgt
|
605V max RMS
|
|
0.101 – 3.999MΩ
|
0.001MΩ
|
±(2.0% rdg+5 dgt)
|
|
4.00- 39.99MΩ
|
0.01 MΩ
|
|
40.0 – 399.9MΩ
|
0.1 MΩ
|
±(5.0% rdg+5 dgt)
|
|
400 –1000MΩ
|
1MΩ
|
|
500V
|
0.001 - 0.250MΩ
|
0.001MΩ
|
±15dgt
|
|
0.251 – 3.999MΩ
|
0.001MΩ
|
±(2.0% rdg+5 dgt)
|
|
4.00- 39.99MΩ
|
0.01 MΩ
|
|
40.0 – 399.9MΩ
|
0.1MΩ
|
|
400- 2000MΩ
|
1MΩ
|
±(5.0% rdg + 5 dgt)
|
|
1000V
|
0.001 - 0.250Mv
|
0.001MΩ
|
±15dgt
|
|
0.251 – 3.999Mv
|
0.001MΩ
|
±(2.0% rdg+5 dgt)
|
|
4.00- 39.99MΩ
|
0.01 MΩ
|
|
40.0 – 399.9M
|
0.1Mv
|
|
400 - 1000MΩ
|
1MΩ
|
±(3.0% rdg+5 dgt)
|
|
1000 - 4000Mv
|
1MΩ
|
±(5.0% rdg+10 dgt)
|
• Autorange
• Open circuit voltage : <1.3 x V0
• Accuracy of nominal voltage : –0% +10%
• Short circuit current : <3.0mA
• Nominal testing current : 1mA @ 1KΩx V (1mA @ 500KΩ)
